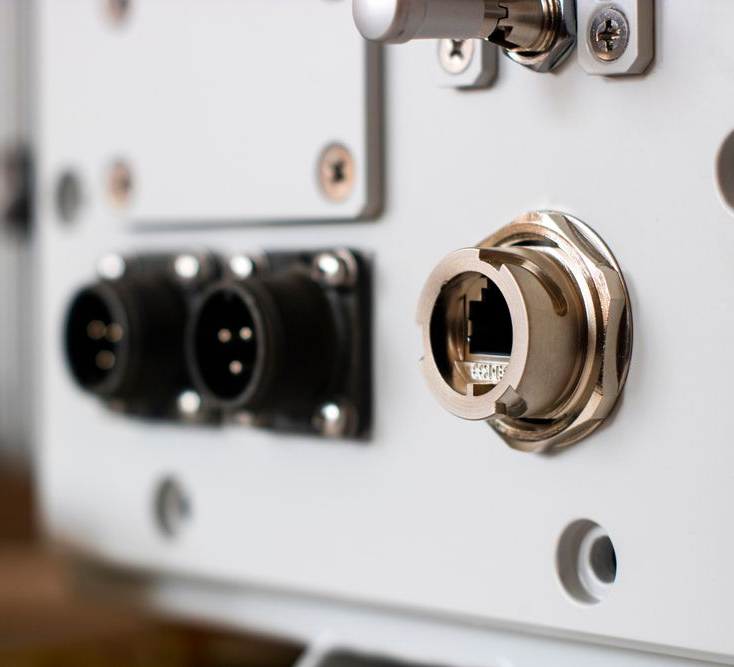

Circular connectors are essential components in many electronic systems. From industrial control panels to aerospace instrumentation to medical imaging equipment, these connectors provide the secure, high-reliability connections needed for signal, power, and data transmission.

At EI Sales, we support OEMs by helping engineers and sourcing professionals evaluate connector options that match their application requirements, compliance needs, and production timelines. This guide offers a foundational overview of circular connectors and what to consider when specifying them.

There are several types of circular connectors available on the market, each suited to different use cases:

Threaded Coupling

Threaded connectors use a screw-on interface to ensure a secure, vibration-resistant connection. They are common in high-reliability and military-grade applications.

Bayonet Coupling

Bayonet-style connectors offer fast, quarter-turn locking mechanisms. These are well-suited to environments that require frequent connect/disconnect operations without sacrificing reliability.

Push-Pull Coupling

Push-pull connectors use a spring-loaded mechanism that locks and unlocks quickly with a simple push or pull motion. They are often used in medical devices or test and measurement equipment where ease of use is critical.

Environmental or Sealed Connectors

These connectors are designed for use in outdoor or rugged conditions and are built to prevent ingress of dust, water, or chemicals. Sealed circular connectors often comply with IP67, IP68, or IP69K ratings.

Hybrid Circular Connectors

Hybrid designs combine signal, power, and data lines into a single housing. This simplifies cable management and is particularly useful in robotics, machine control, and modular systems.

Choosing the right circular connector involves more than just matching pin counts. Consider the following factors to ensure the connector meets both technical and production requirements:

• Current and Voltage Ratings: Ensure the connector can safely handle the required load.


• Contact Material and Plating: Gold or tin plating affects conductivity, corrosion resistance, and mating cycles.


• Sealing and Environmental Requirements: Consider IP rating, chemical exposure, and thermal extremes.


• Size and Footprint: Shell size, cable strain relief, and mounting options must fit your mechanical design.


• Termination Style: Options include solder, crimp, PCB mount, or pre-molded cables, depending on your assembly strategy.

• Agency Approvals and Compliance: Connectors for medical, aerospace, and defense applications often require documentation and traceability.


EI Sales provides more than component sourcing. We partner with engineers to ensure selected connectors integrate seamlessly into the larger system. Our services include:

• Local support for connector selection and design-in assistance


• U.S.-based cable and harness assembly for fast-turn builds


• Integration of circular connectors into box builds or subsystem assemblies


• Access to vetted, high-quality connector lines with proven supply chain reliability



As a contract manufacturer and OEM with over 39 years of experience, we understand how connector decisions impact manufacturability, compliance, and long-term reliability.

From initial design through production ramp, EI Sales supports your product lifecycle with engineering guidance, sourcing expertise, and domestic manufacturing capabilities.
